加圧型焼結銅ペーストの
口頭発表The oral presentation on Cu sinter paste
for pressure sintering

当社は2023年5月9日(火)～5月11日(木)の3日間、ドイツのニュルンベルク メッセで開催された「PCIM Europe 2023」において、会期中に行われたカンファレンスプログラムで加圧型焼結銅ペーストの口頭発表を行いました。
口頭発表の概要を以下の通りご紹介いたします。

Mitsui Kinzoku participated as an exhibitor at the Power Conversion, Intelligence Motion Europe 2023(PCIM Europe 2023) held at Nürnberg in Germany for three days from Tuesday, May 9, 2023 to Thursday, May 11, 2023.
We gave the oral presentation on Cu sinter paste for pressure sintering during the conference program that will be held as part of the trade show.
We introduce the summary of presentation as below.

Time: 2:20 pm, Wednesday, May 10, 2023
Contents of Presentation: Bonding Properties and Reliability Evaluation of Cu Sinter Paste for Pressure Sintering

1. Bonding Properties and Die Backside Metallization Compatibility

Our Cu sinter paste showed a good bonding state with both Au or Ag Metallized dies.

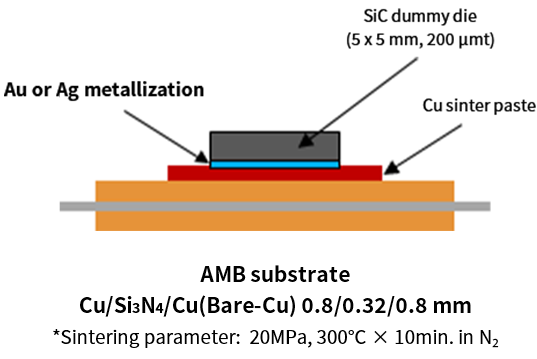

Schematic Image

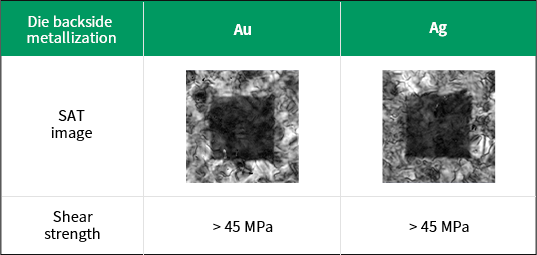

Result

2. Reliability evaluations in package samples

There were no obvious generated voids or delamination in the bonding area after reliability tests.

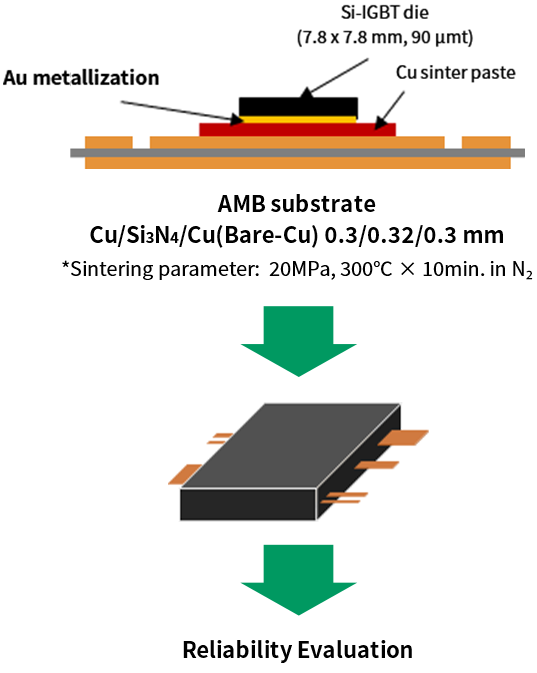

Schematic image and Evaluation flow

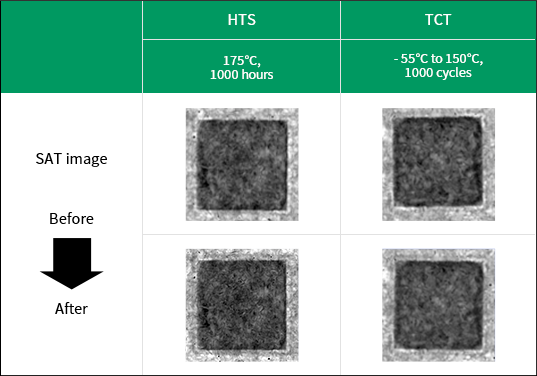

Result
